High Pressure & Diesel Engine Air Compressor

Our Products > High Pressure & Diesel Engine Air Compressor
Reciprocating Air Compressor
Silent Type Air Compressor
High Pressure & Diesel Engine Air Compressor
Air Compressor Pump (Bare Compressor)
Key Parts

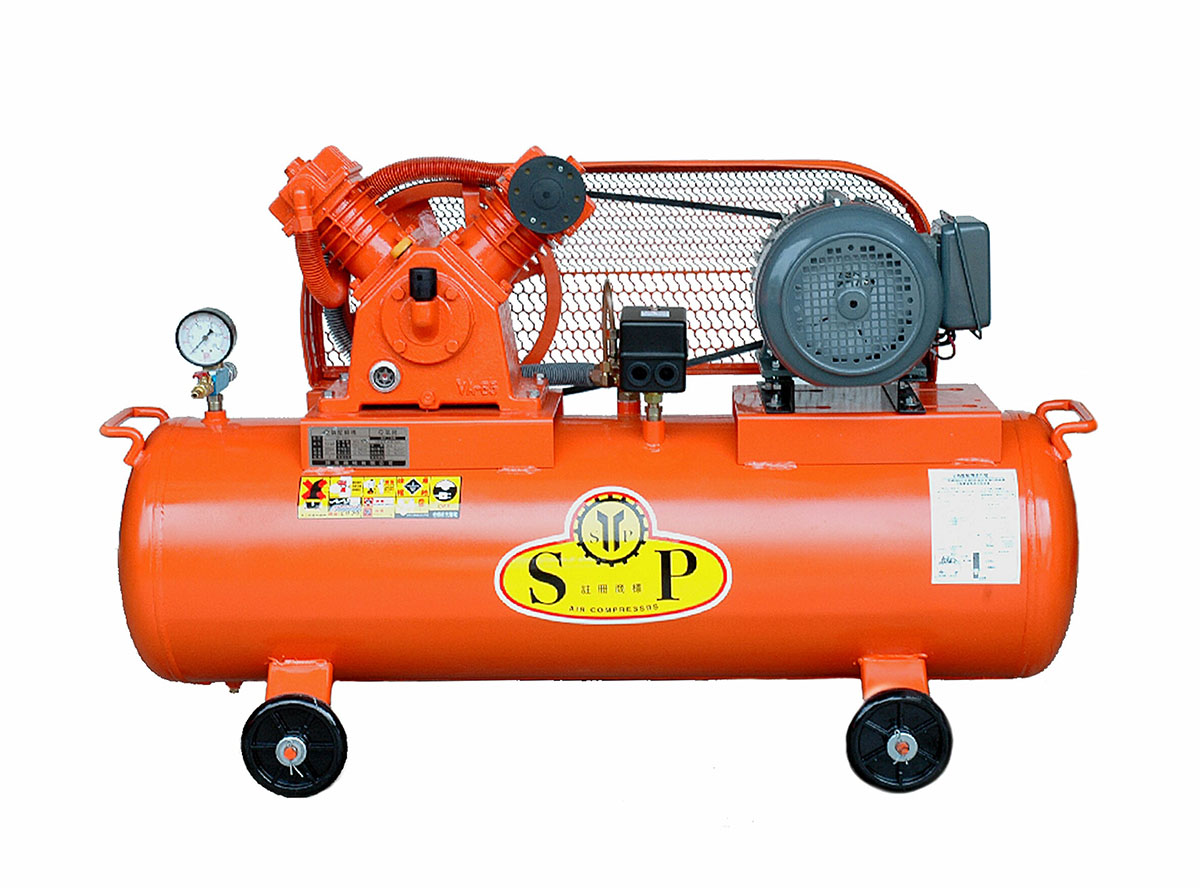

SPH-65V

SPH-65V
Power( HP )
1
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 1 / 44
Φ51 x 1 / 44
Speed( rpm )
635
Displacement( l / min )
110
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ300 x 1050
Capacity( L )
70For Taiwan

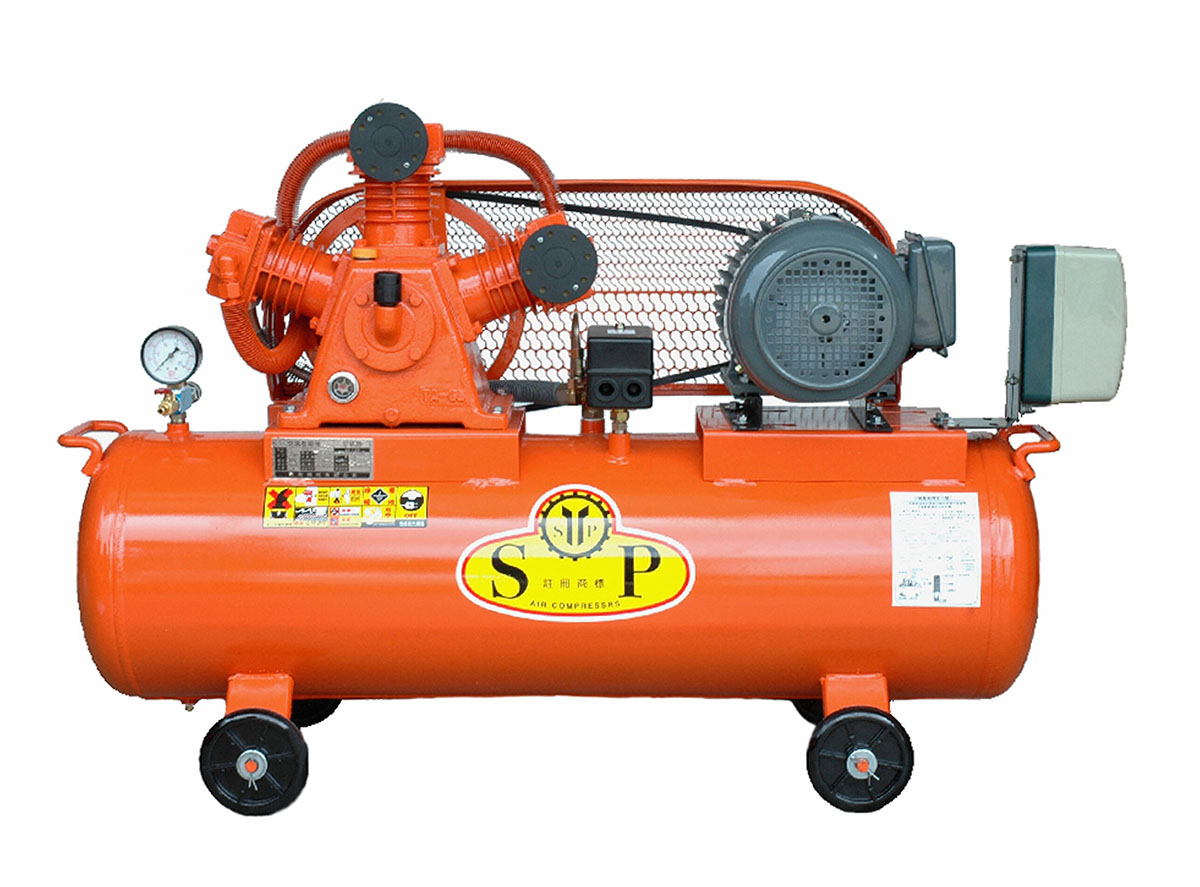

SPH-65T

SPH-65T
Power( HP )
2
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 2 / 48
Φ51 x 1 / 48
Speed( rpm )
635
Displacement( l / min )
255
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ300 x 1050
Capacity( L )
70For Taiwan

SPH-51/80V

SPH-51/80V
Power( HP )
3
Cylinder( Φmm x PCS / Stroke mm )
Φ51 x 1 / 60
Φ80 x 1 / 60
Speed( rpm )
770
Displacement( l / min )
464
Pressure( Kg/cm2G )
16
Air Tank( mm x mm )
Φ350 x 1160
Φ550 x 1200
Capacity( L )
105/200For Taiwan

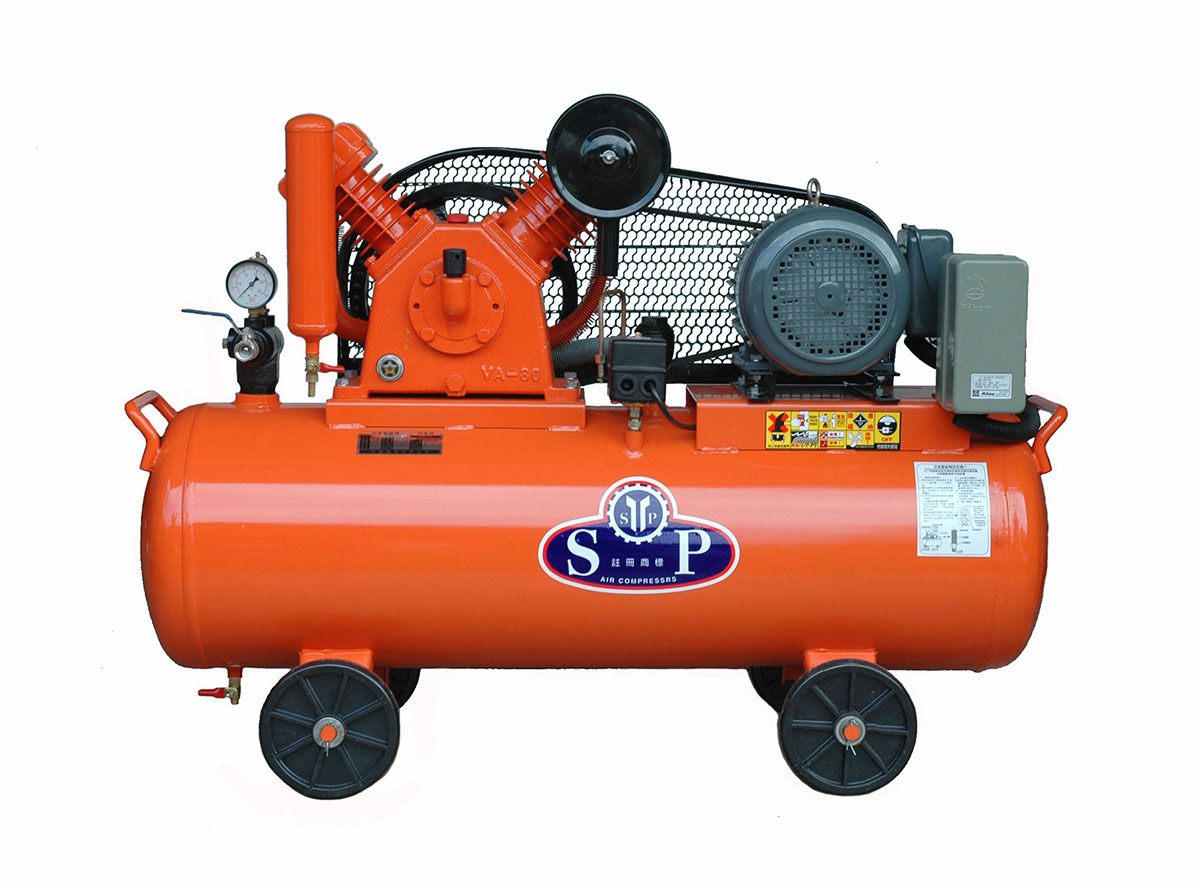

SPH-80V

SPH-80V
Power( HP )
3
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 1 / 60
Φ80 x 1 / 60
Speed( rpm )
770
Displacement( l / min )
464
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ350 x 1160
Capacity( L )
105For Taiwan

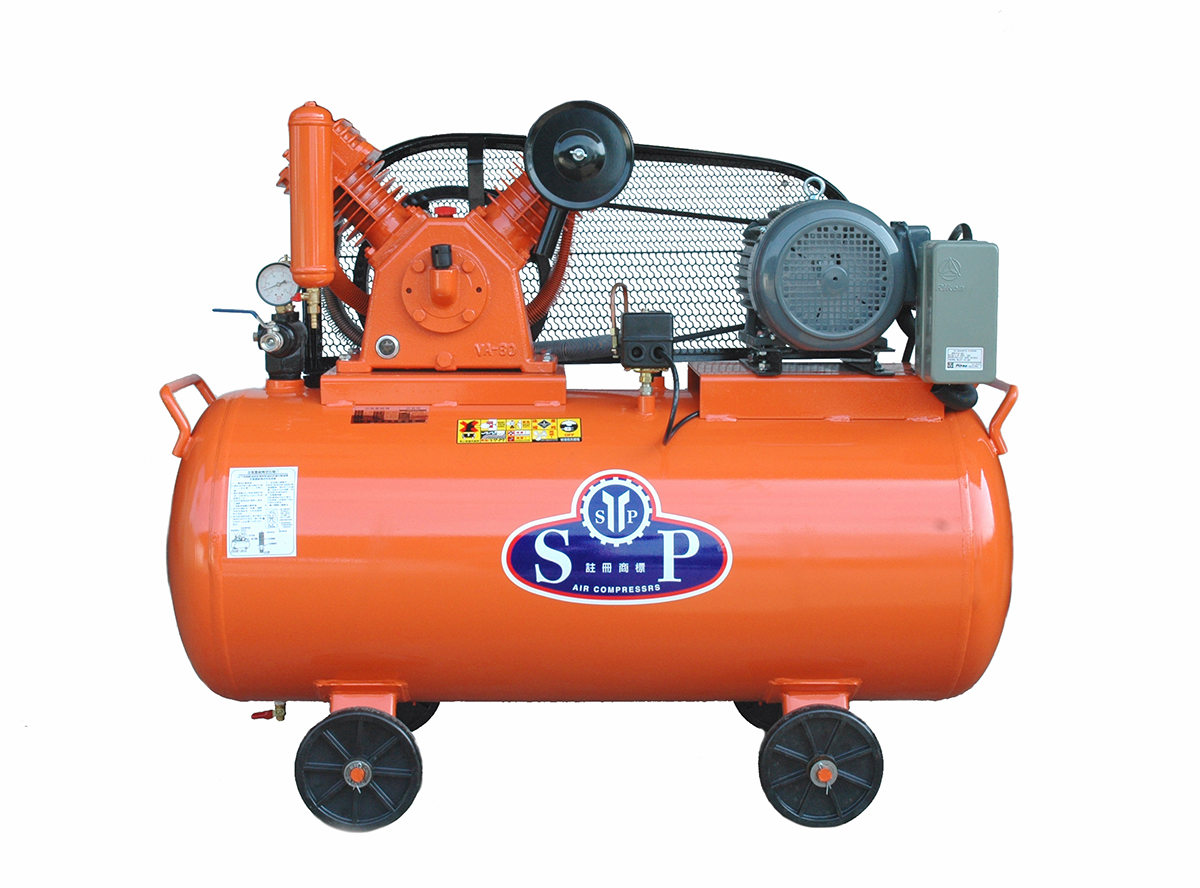

SPH-80T

SPH-80T
Power( HP )
5
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 1 / 60
Φ80 x 2 / 60
Speed( rpm )
950
Displacement( l / min )
573
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ390 x 1420
Capacity( L )
155For Taiwan

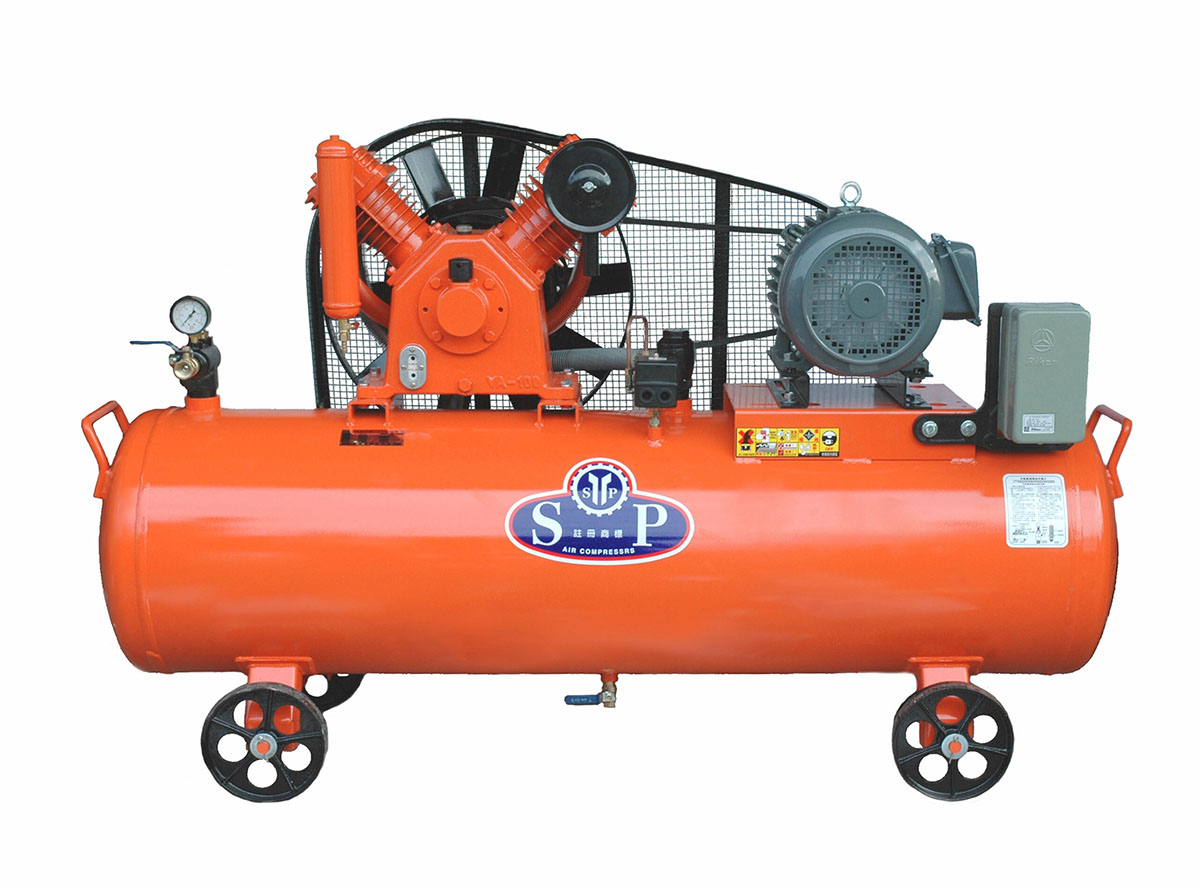

SPH-100V

SPH-100V
Power( HP )
7.5
Cylinder( Φmm x PCS / Stroke mm )
Φ100 x 1 / 70
Φ80 x 1 / 70
Speed( rpm )
750
Displacement( l / min )
825
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ485 x 1440
Capacity( L )
245For Taiwan

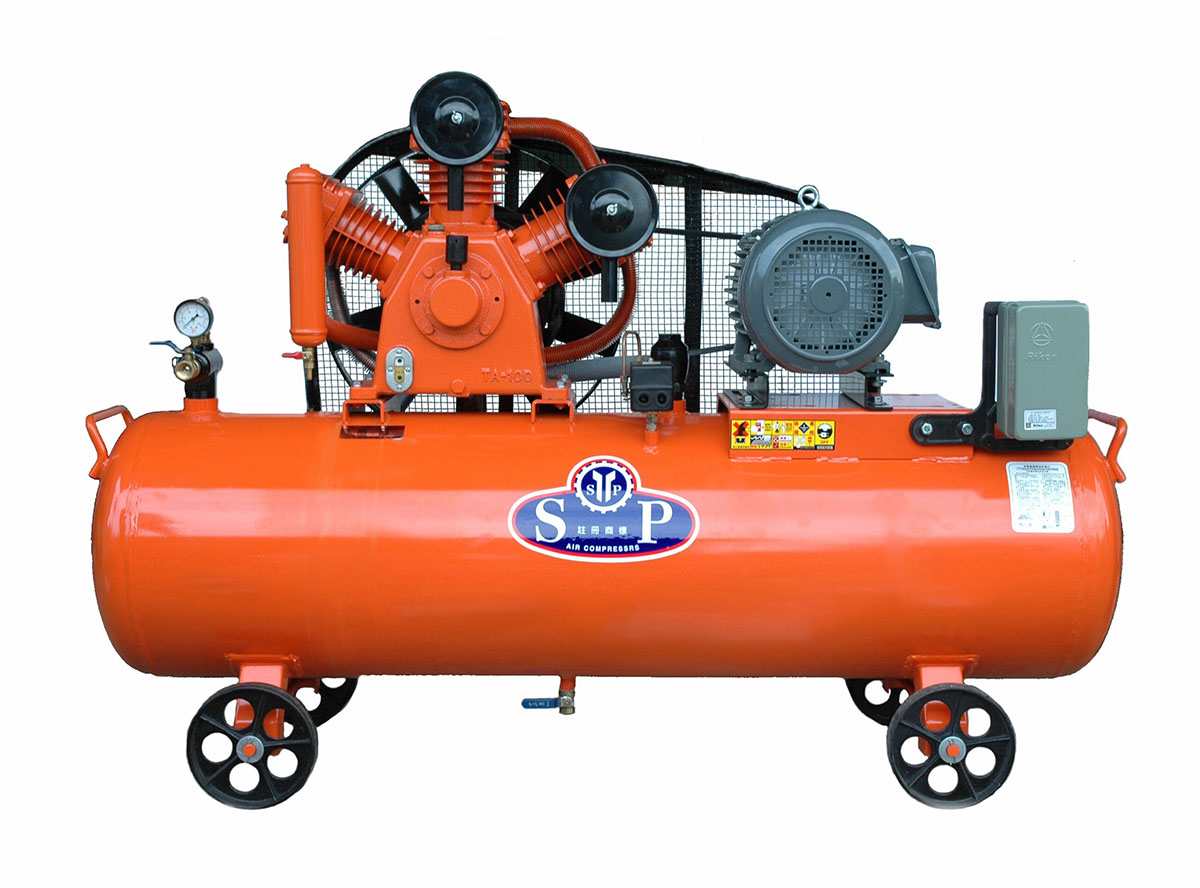

SPH-100T

SPH-100T
Power( HP )
10
Cylinder( Φmm x PCS / Stroke mm )
Φ100 x 2 / 70
Φ80 x 1 / 70
Speed( rpm )
990
Displacement( l / min )
1089
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ485 x 1780
Capacity( L )
305For Taiwan

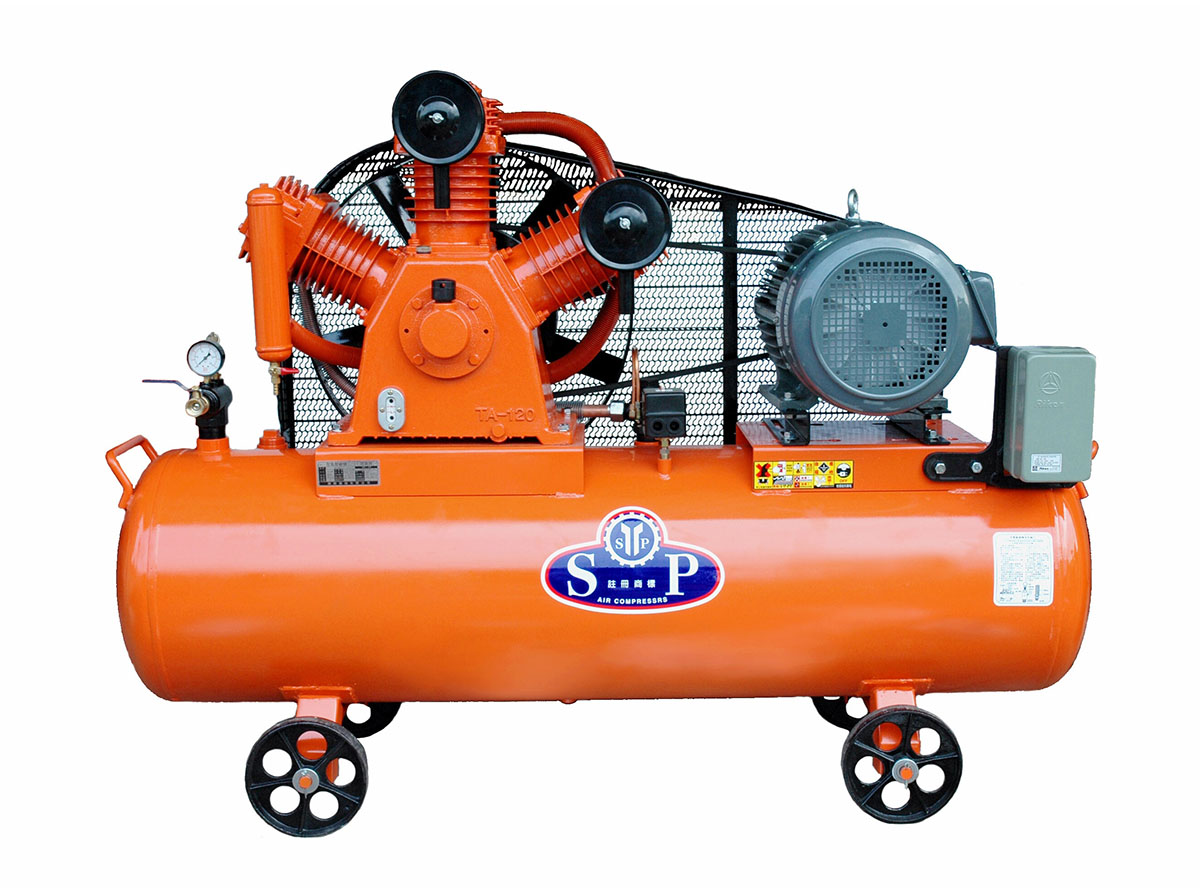

SPH-120T

SPH-120T
Power( HP )
15
Cylinder( Φmm x PCS / Stroke mm )
Φ120 x 2 / 80
Φ100 x 1 / 80
Speed( rpm )
860
Displacement( l / min )
1556
Pressure( Kg/cm2G )
12
Air Tank( mm x mm )
Φ485 x 1780
Capacity( L )
305For Taiwan

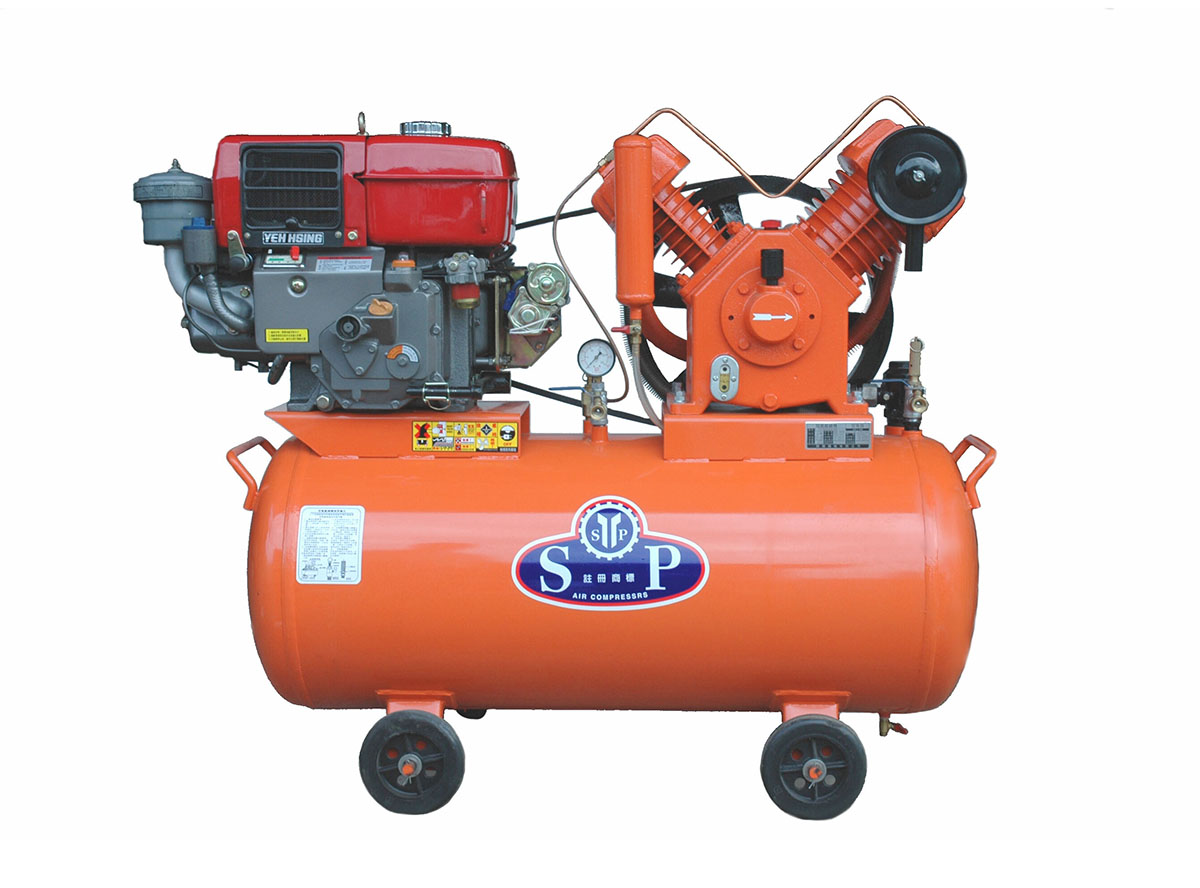

SPH-65x120V

SPH-65x120V
Power( HP )
5
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 2 / 80
Φ120 x 1 / 80
Speed( rpm )
690
Displacement( l / min )
676
Pressure( Kg/cm2G )
16-20
Air Tank( mm x mm )
Φ550 x 1200
Capacity( L )
200For Taiwan

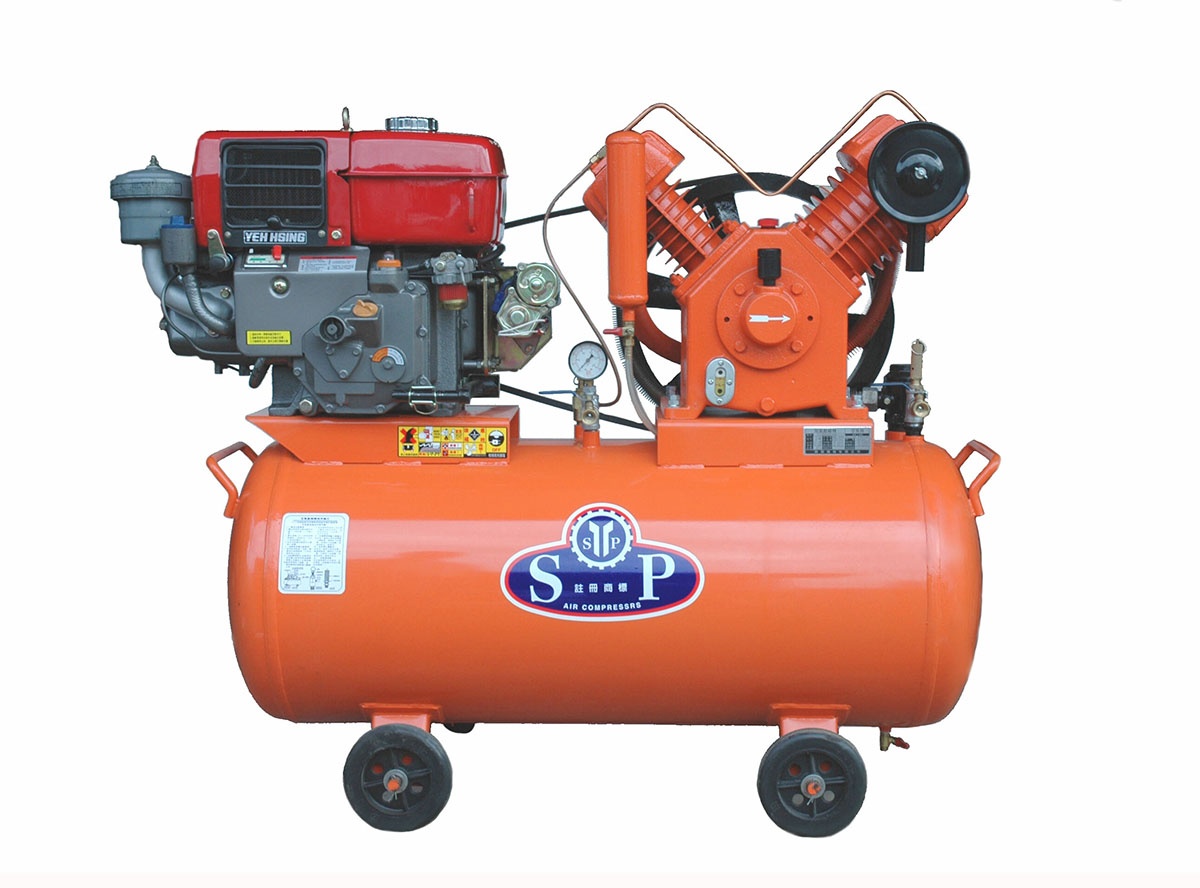

SPH-65x120V

SPH-65x120V
Power( HP )
5
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 2 / 80
Φ120 x 1 / 80
Speed( rpm )
690
Displacement( l / min )
676
Pressure( Kg/cm2G )
16-20
Air Tank( mm x mm )
Φ550 x 1500
Capacity( L )
250For Taiwan
