Our Products
Reciprocating Air Compressor

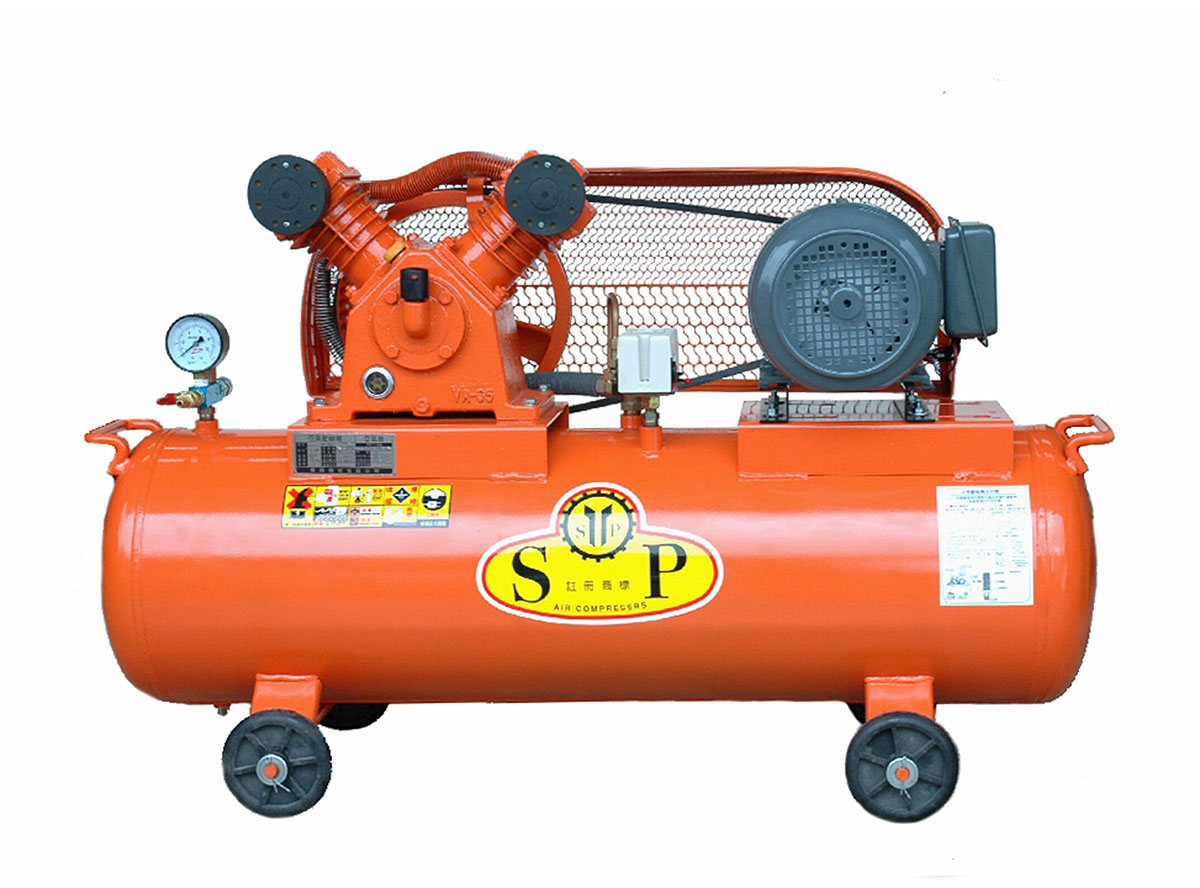

SP-65V
SP-65V
Power( HP )
1
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 2 / 44
Speed( rpm )
635
Displacement( l / min )
185
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ300 x 1050
Capacity( L )
70For Taiwan
70For China

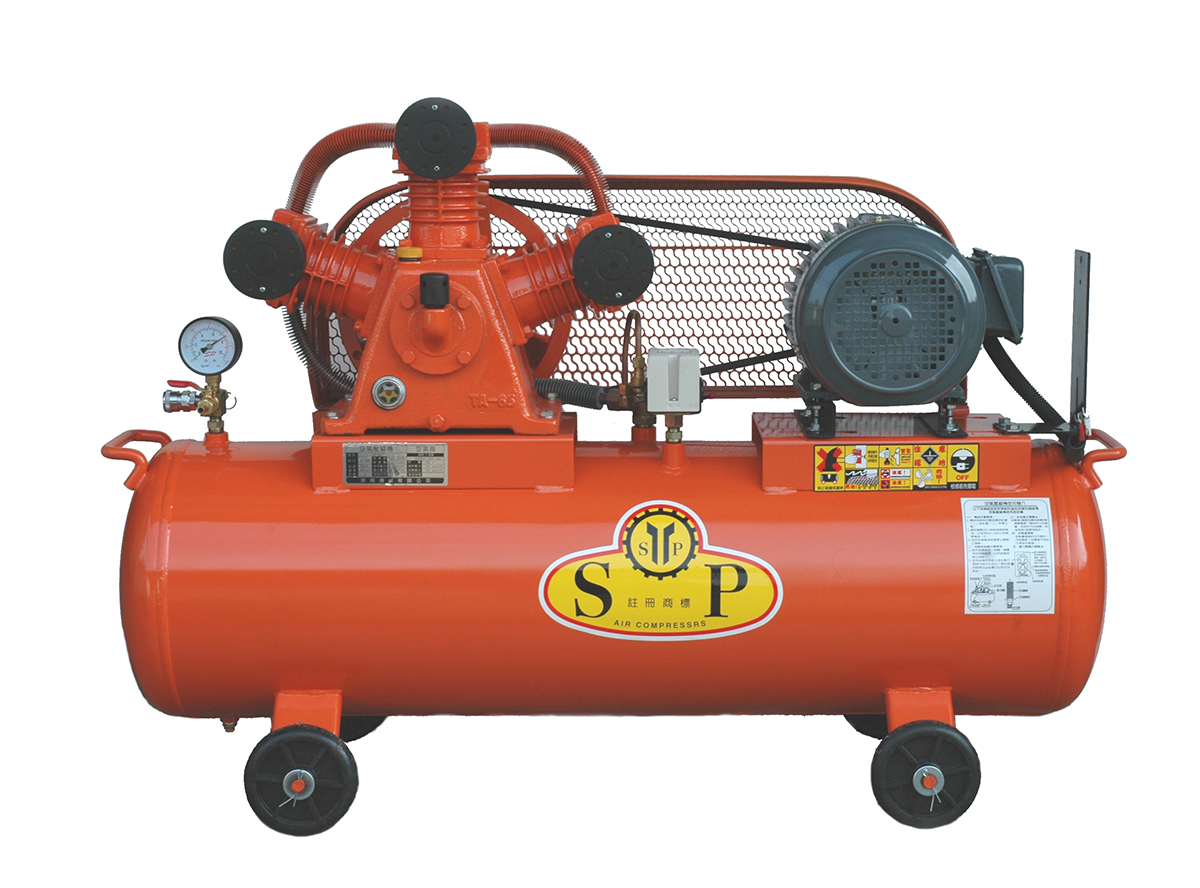

SP-65T
SP-65T
Power( HP )
2
Cylinder( Φmm x PCS / Stroke mm )
Φ65 x 3 / 48
Speed( rpm )
635
Displacement( l / min )
303
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ300 x 1050
Capacity( L )
70For Taiwan
70For China

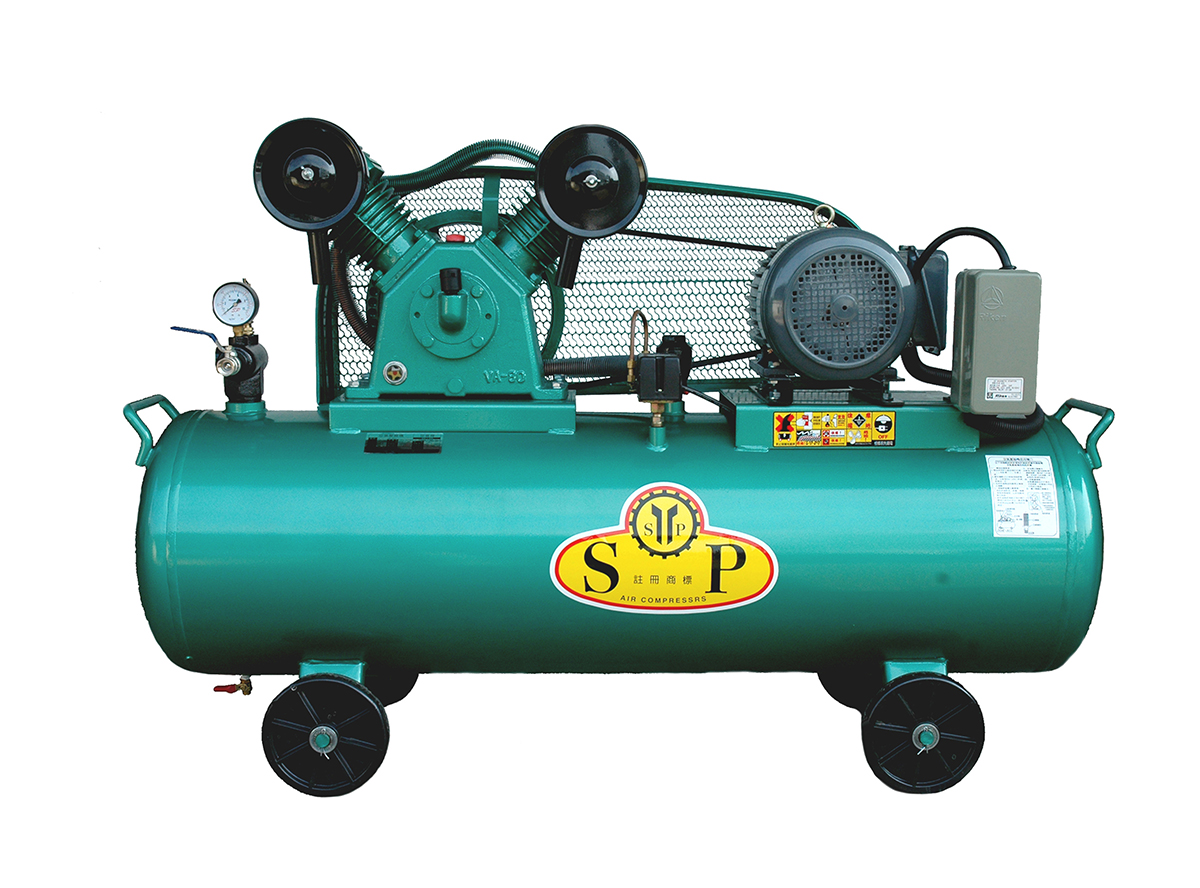

SP-80V
SP-80V
Power( HP )
3
Cylinder( Φmm x PCS / Stroke mm )
Φ80 x 2 / 60
Speed( rpm )
770
Displacement( l / min )
464
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ350 x 1160
Capacity( L )
105For Taiwan
80For China

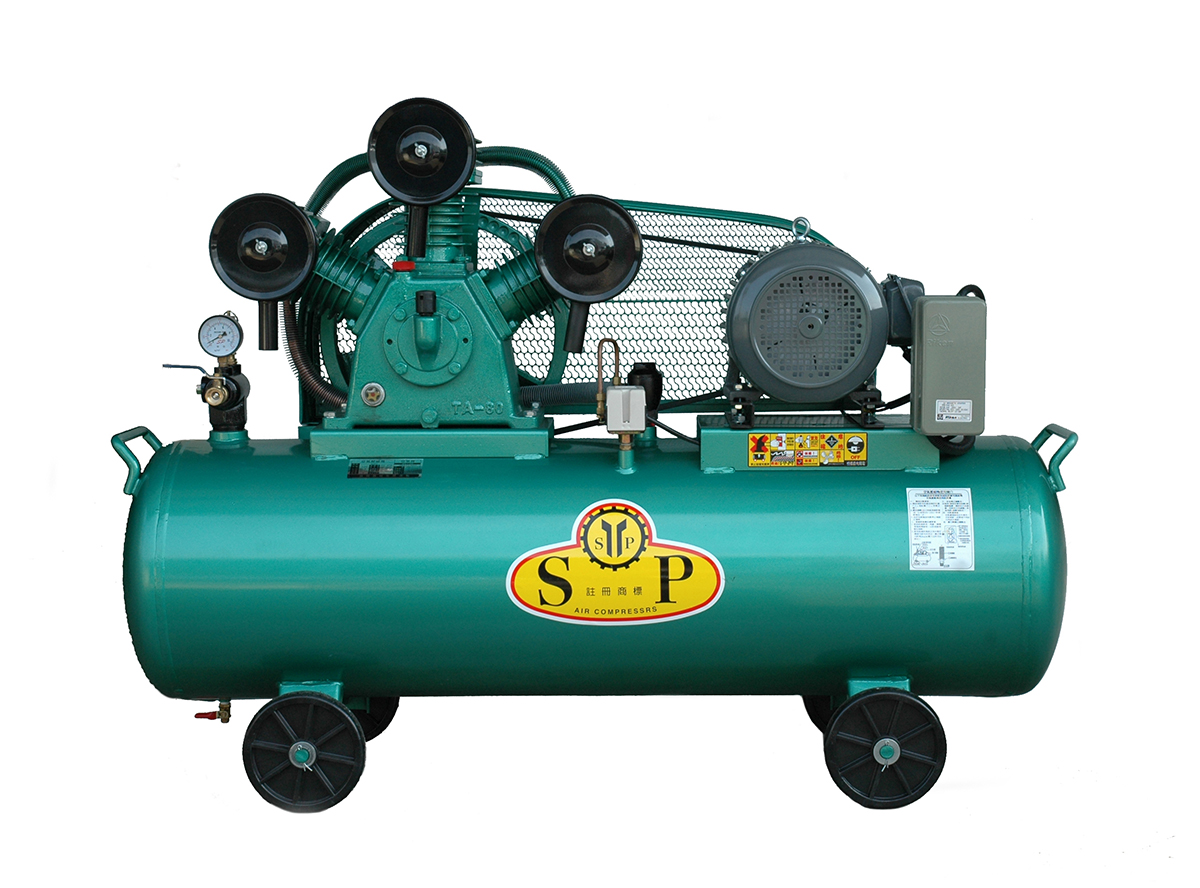

SP-80T
SP-80T
Power( HP )
5
Cylinder( Φmm x PCS / Stroke mm )
Φ80 x 3 / 60
Speed( rpm )
850
Displacement( l / min )
769
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ390 x 1410
Capacity( L )
155For Taiwan
120For China

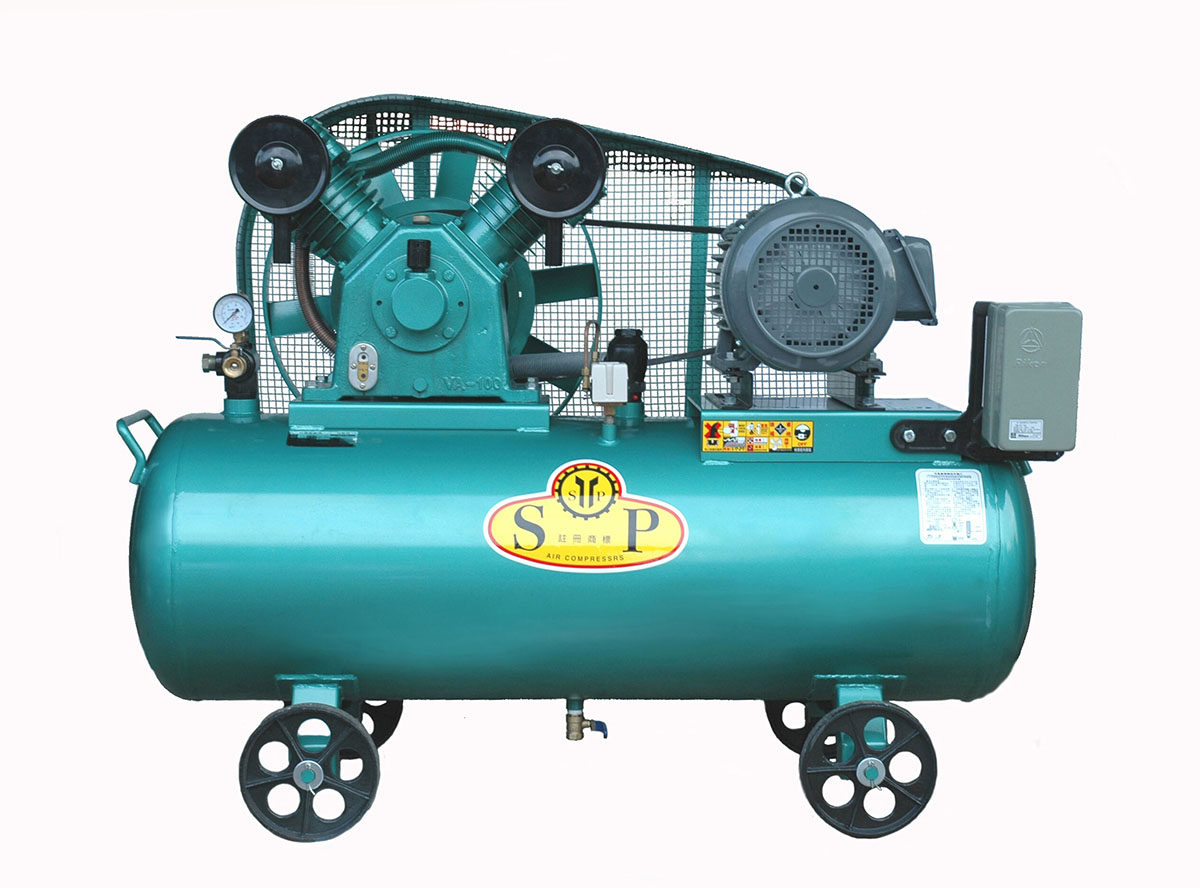

SP-100V
SP-100V
Power( HP )
7.5
Cylinder( Φmm x PCS / Stroke mm )
Φ100 x 2 / 70
Speed( rpm )
950
Displacement( l / min )
1045
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ485 x 1440
Capacity( L )
245For Taiwan
150For China

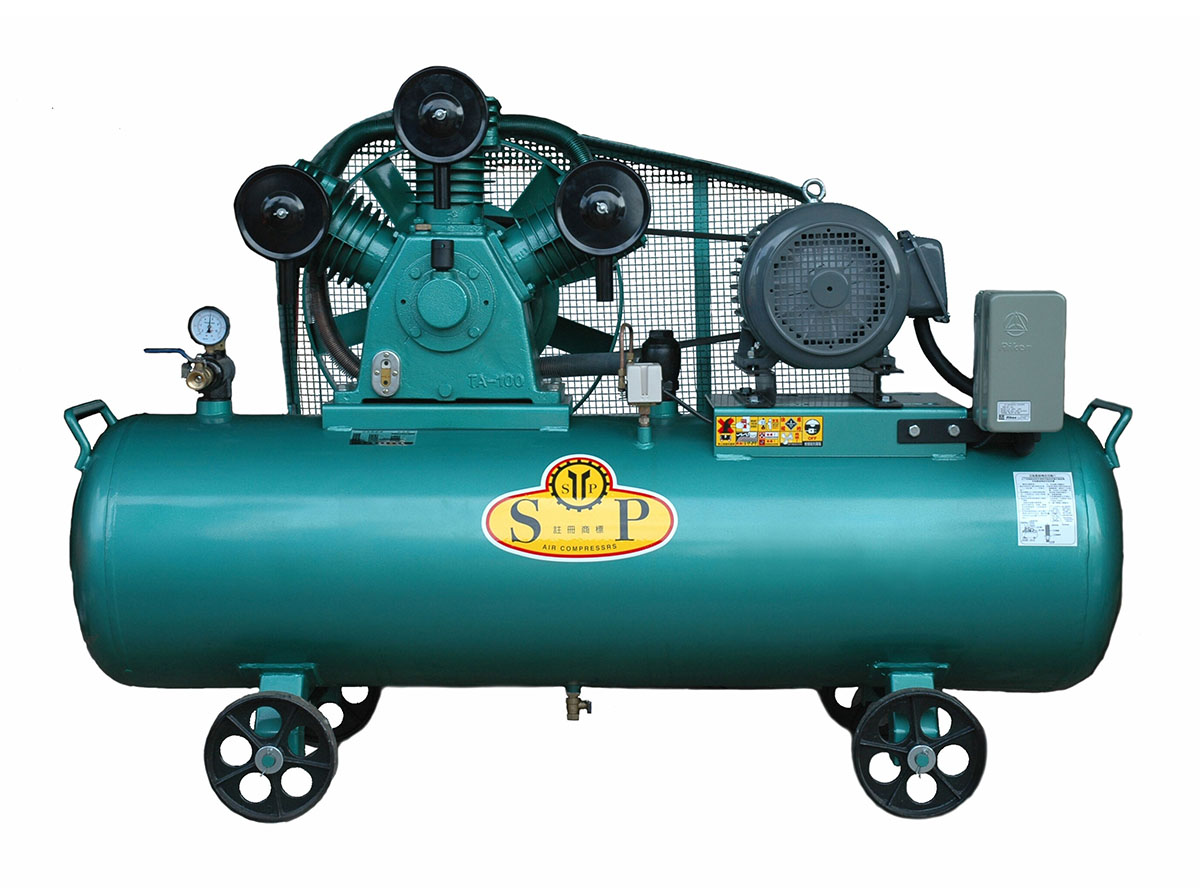

SP-100T
SP-100T
Power( HP )
10
Cylinder( Φmm x PCS / Stroke mm )
Φ100 x 3 / 70
Speed( rpm )
900
Displacement( l / min )
1484
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ485 x 1770
Capacity( L )
305For Taiwan
200For China

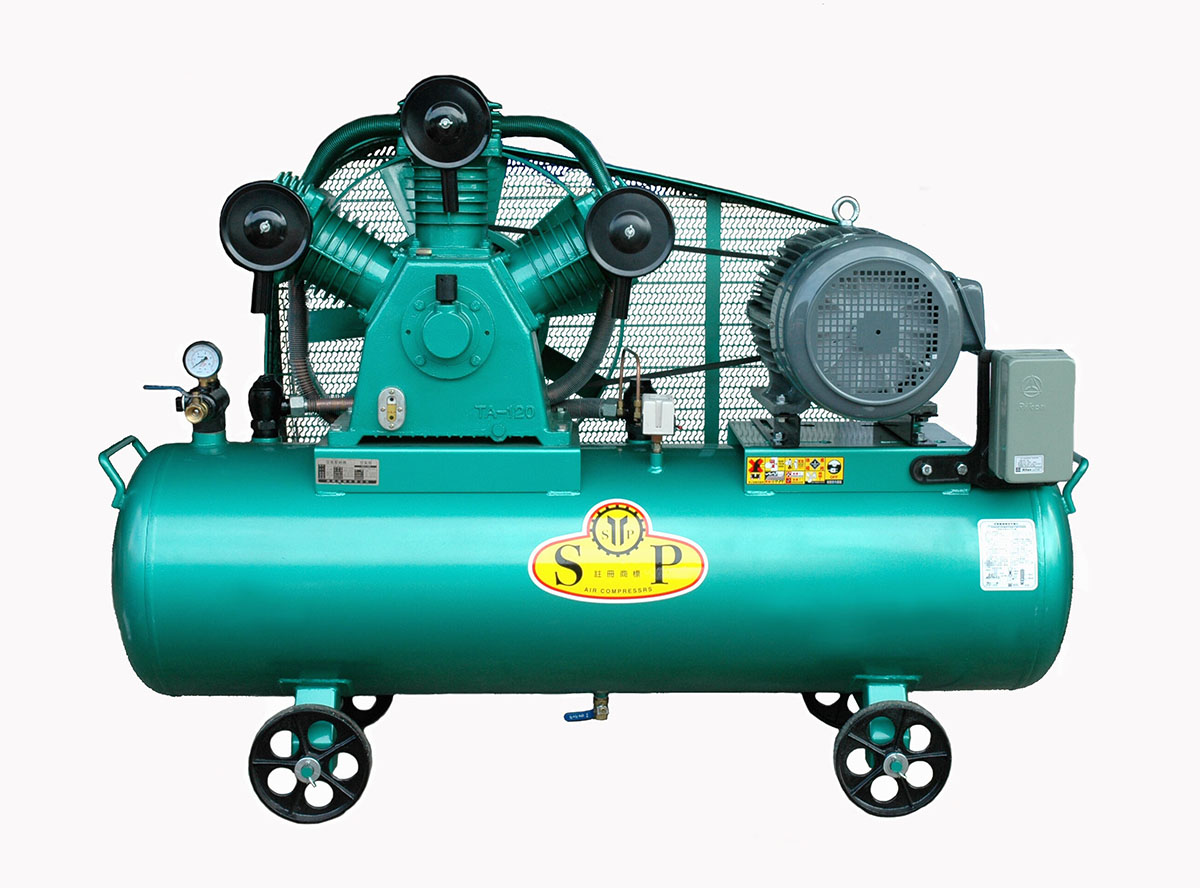

SP-120T
SP-120T
Power( HP )
15
Cylinder( Φmm x PCS / Stroke mm )
Φ120 x 3 / 80
Speed( rpm )
860
Displacement( l / min )
2334
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ485 x 1770
Capacity( L )
305For Taiwan
300For China

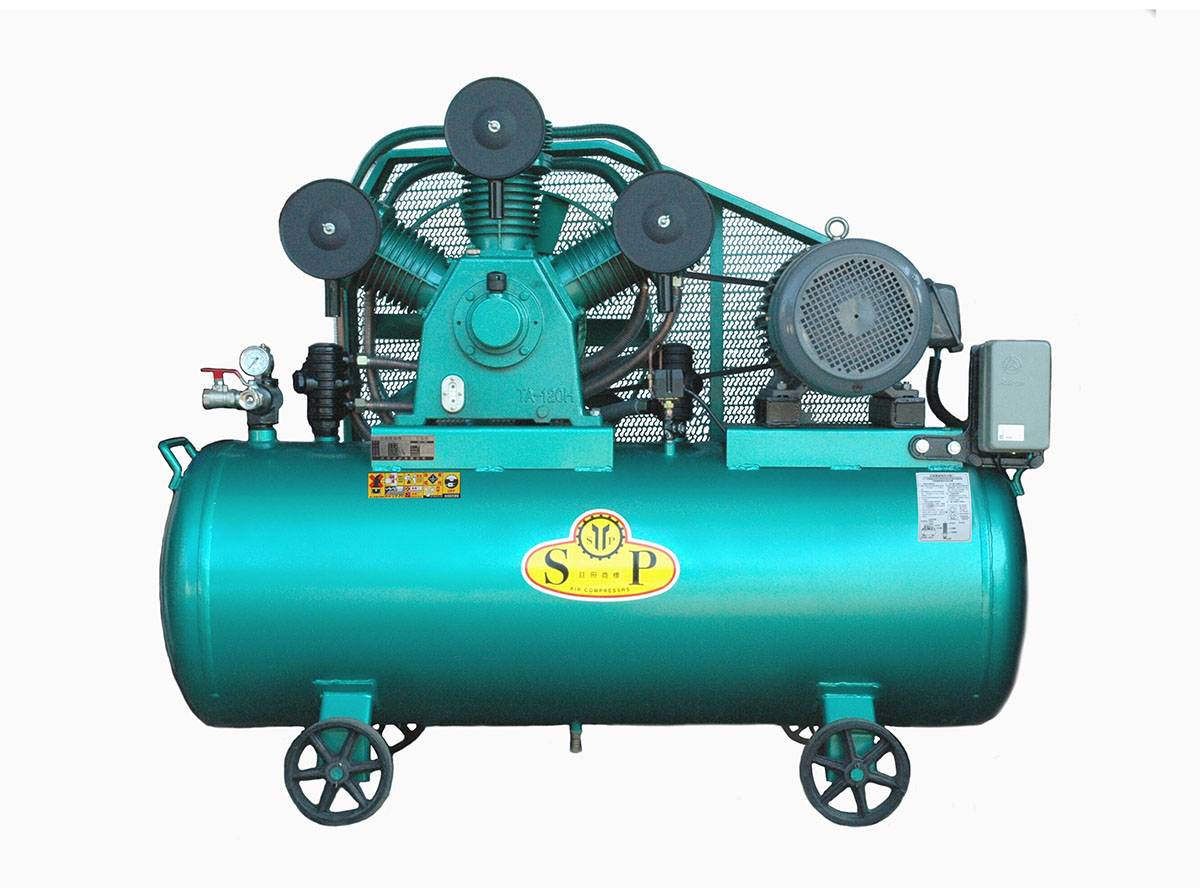

SP-120TH
SP-120TH
Power( HP )
20
Cylinder( Φmm x PCS / Stroke mm )
Φ120 x 3 / 100
Speed( rpm )
890
Displacement( l / min )
3020
Pressure( Kg/cm2G )
7
Air Tank( mm x mm )
Φ600 x 1500
Capacity( L )
450For Taiwan
450For China
